Your door is the gateway to your business. Ensure your services to Nova Scotians are accessible to all. As accessibility standards increase, automated entry systems become more important. Do you have your accessibility plan in place? We can survey your existing occupied spaces to determine accessibility issues, and assist you with a corrective and affordable plan.
The automatic door operator allows Barrier-Free access, providing customer convenience while meeting the requirements of persons with disabilities. It's the perfect choice for new and existing buildings, permitting easy access to commercial, industrial, and institutional locations.

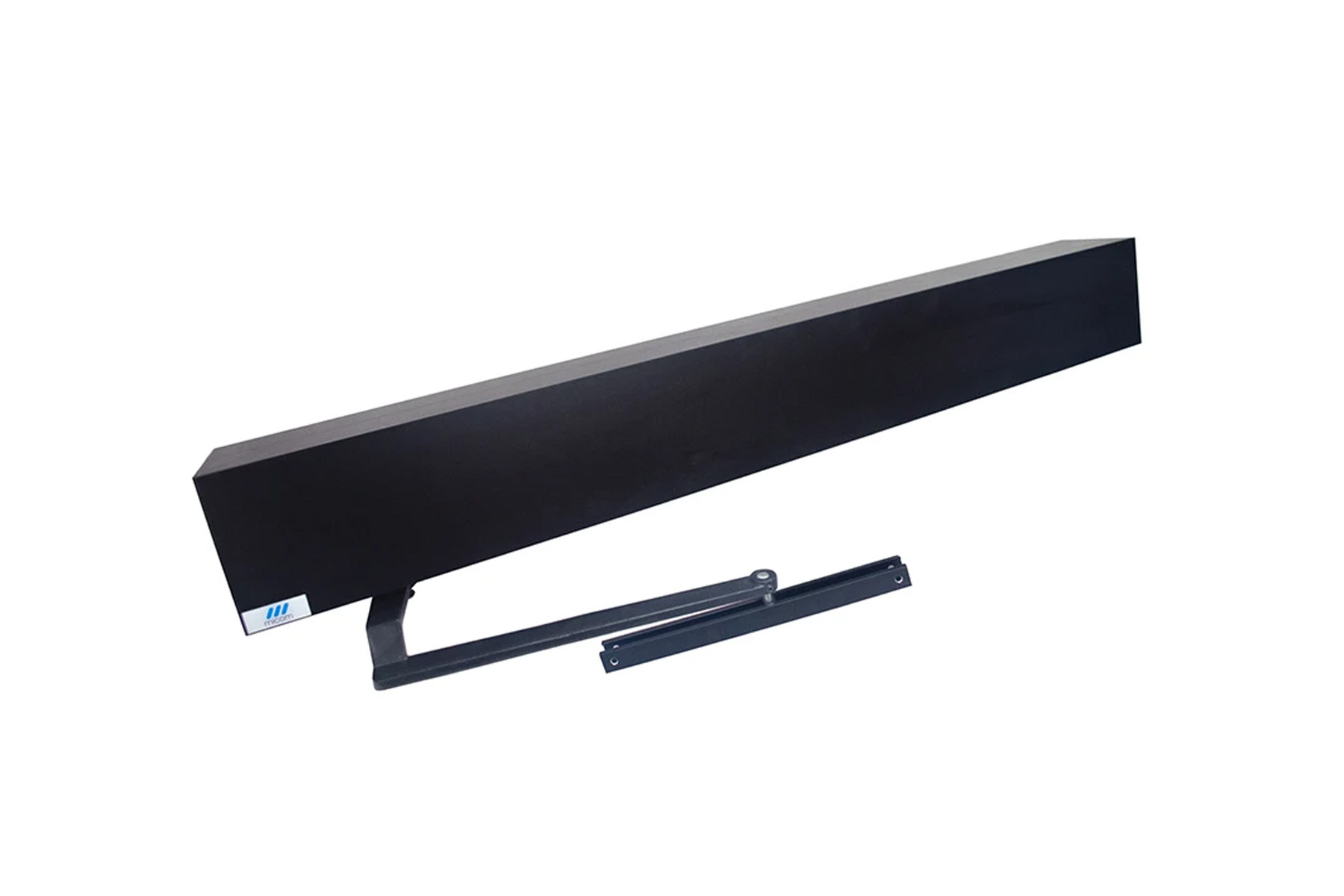

Finish: Silver / Black

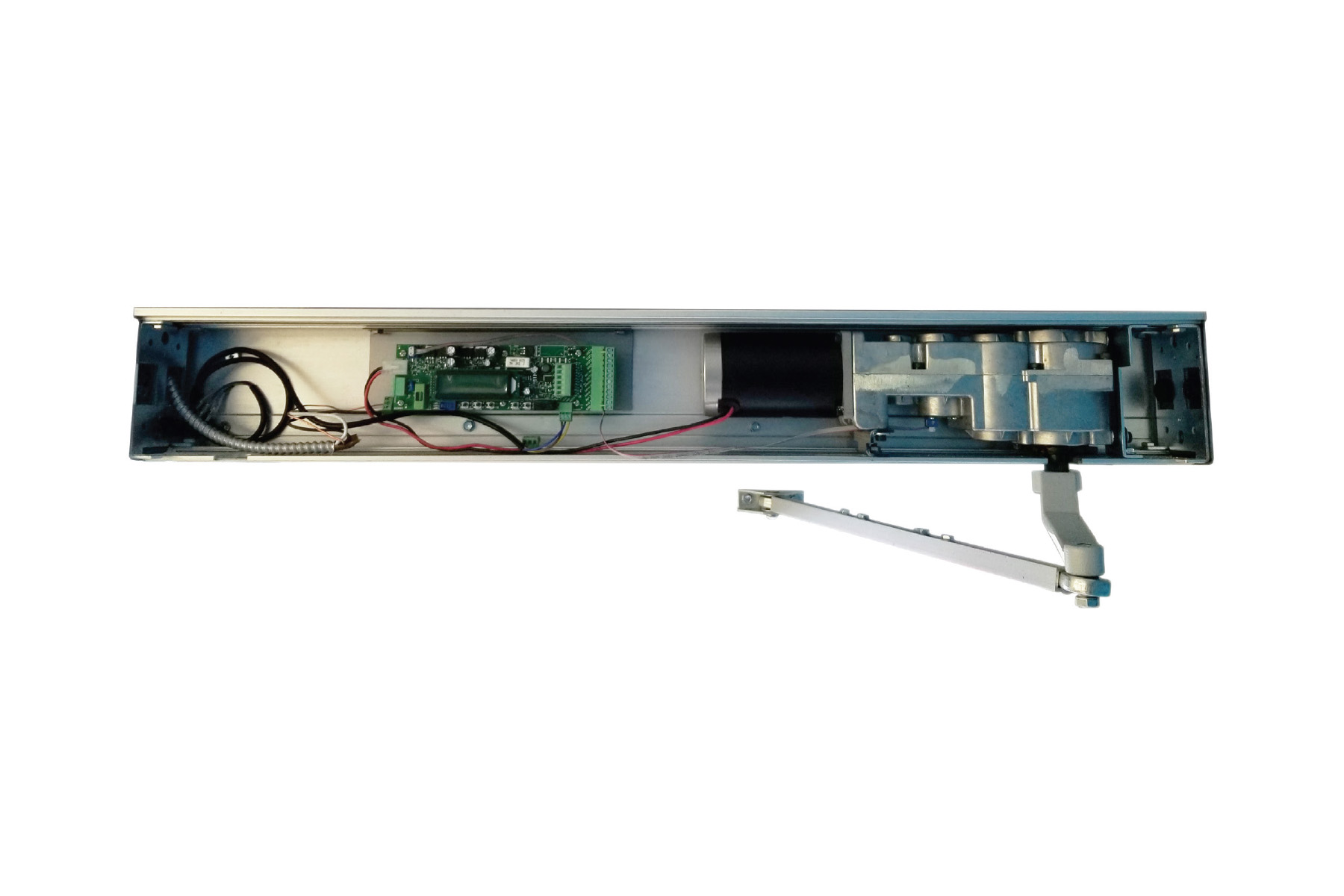

Motor: A large, powerful ¼ hp 24vdc permanent magnet motor ensures a long-lasting trouble-free ownership
Header Dimensions: 5 1/2”h x 4 1/2”d x minimum 29”w, (140mm x 114mm x 762mm), standard width is 39” for a 36” door
Heavy Duty Capacity: Industry leading capability for doors weighing up to 700 lbs. (315Kg)
Push & Go: Selectable, activates automatic opening after pedestrian has manually moved the door 4”
Obstacle Detection: Obstacle detection Safety on Opening & Closing, door stops or reverses when encountering an obstruction
Selectable Power Close: Activates when door closing and in programmed latching area to ensure door is positively latched
Electric Lock Input & Delay: Selectable Fail Safe or Fail Secure electric lock setting with adjustable time delay of 0.2 - 2.0 sec
Latch Assist Programs: Selectable latch assist programs “before open and closing” to prevent binding of electric strike
Electronic-Stop Positioning: Adjustable Electronic stop setting door open position preventing damage to the entrance components
Adjustable Back Check: Allows you to set the speed and position of the back check of the door for positive control at all times
Available Products:
• Standard Profile With Left/Right Pull Arm
• Standard Profile With Left/Right Push Arm
Authorities/Certifications:
UL325/UL991 Listed
CAN/CSA – C22.2 No. 0.8 Listed
UL10C – Rated 2 Hours
Conforms with ANSI A156.10 / ANSI A156.19
Complies with ADA
