Camden — CM-75

Column Push Plate Switches

Camden CM-75 Series Column™switches offer greater user convenience and lower installation costs by providing a single activation device in place of two high/low switches, as required by a growing number of building codes across North America.

CM-75 Series Column™ switches feature solid aluminum or stainless steel construction and are available in a range of finishes, with the option for Kinetic™no-battery wireless or Lazerpoint RF™battery powered wireless transmitters.

Contact For More Information
CM-7509 9" Long column push plate switch
No items found.

PRODUCT DETAILS

Features:

• Easily operated at any angle by hand, foot or body.

• Exceeds state and provincial building code requirements.

• Available in 9” and 36” sizes with clear, bronze or blue anodized finishes and stainless steel (36” only).

• Color matched with Camden aluminum, bronze and stainless steel switch mounting posts (bollards), in 42” and 48” tall sizes.

• (2) fully redundant SPDT switches, rated 15 Amps.

• Option for Kinetic™ no battery wireless transmitter*or Lazerpoint RF™ transmitter and battery pack.

• Adjustable leveling screws for easy installation on uneven walls.

Voltage: 12/24V AC/DC

Contact Rating: 15A @ 30V DC

Contact Type: SPDT Form 'C'

Mounting: Single or Double Gang

Finishes: Clear Aluminum, Dark Bronze, Blue Anodized

Dimensions: CM-7509: 10 5/8" H x 5 7/8" W x 1 1/2" D — CM-7536: 37 1/2" H x 5 7/8" W x 1 1/2" D

Available Products:

CM-7509 9" Long column push plate switch

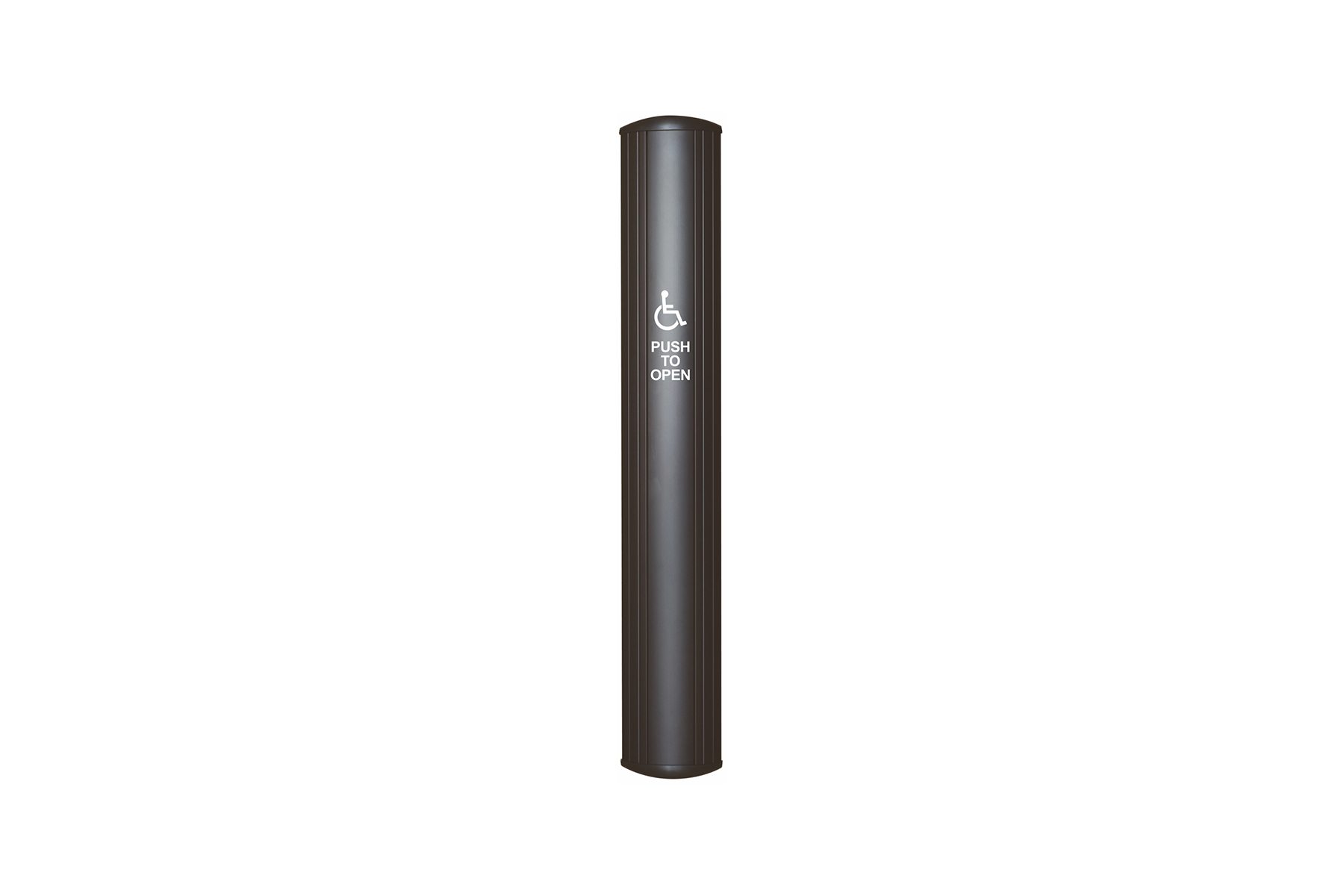

CM - 7536 36" Long column push plate switch

Mounting Posts:

CM-42-DSU-CLR 42" Extruded aluminum bollard, clear aluminum finish

CM-42-DSU-BRZ 42" Extruded aluminum bollard, dark bronze finish

CM-42-DSU-CLR 48" Extruded aluminum bollard, clear aluminum finish

CM-42-DSU-BRZ 48" Extruded aluminum bollard, dark bronze finish

Faceplate Graphic Options: 6 Options
